Thunder 600

Grapes, Pomegranate, Mango, Guava, Orange, Apple, Sugarcane, Wheat, Cotton, Red Gram, Rice, Etc.

[ngg src=”galleries” ids=”2″ display=”basic_slideshow”]

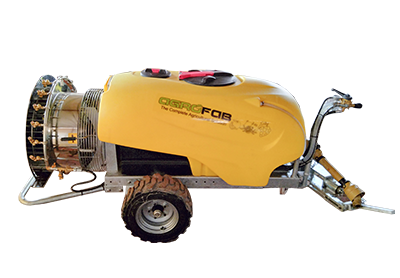

Agrofab's Thunder 600 is also called as Fan Mouth Systeme. It is a Direct Tractor Mounted Sprayer which is available in 22” , 24” and also in 26” casing with fan as per the tractor’s requirement.

The Air Assisted Sprayer comes with an Italian controller as well as an Italian Diaphragm Pump, cause of connection of pump directly to the Tractor’s PTO power transmission ability of it is high and that’s why you can max it’s power to 30PSI, it have a rear air conveyor, which provides perfect air balancing with the highest air output and low power consumption. An air conveyor system made with stainless steel material which consists of a shell, fins, backplate, bottom baffle, inlet vanes, and deflectors. the nozzles for spray are made of Brass.

It comes with an attachment of a cart containing 600Ltr or 1000Ltr tank.It used for all types of crops such as Grapes, Pomegranate, Mango, Guava, Orange, Apple, Sugarcane, Wheat, Cotton, Red Gram, Rice, Etc.

Specification

Pump: 63LPM Diaphragm
Nozzles: 12 Nozzles
Air Output: 32 m/sec Air Output
Fan: 616 mm Fan
Gearbox: 2+1 Neutral Gearbox
Tractor HP: 24HP and Above

Features

Stainless Steel (SS) Shell assembly.
Italian Controller for accurate distribution of water during spraying.
Perfectly Air Balanced on both sides.
Italian Pump.
Best In class mixer for perfect mixing of pesticides.
All options of Nozzles like American & Italian available as customer requirement.
Beltless power transmission.
Easy to attach or detach on Tractor.
Air velocity adjustment as per requirement.
